Garage Door Opener Sensor Repair

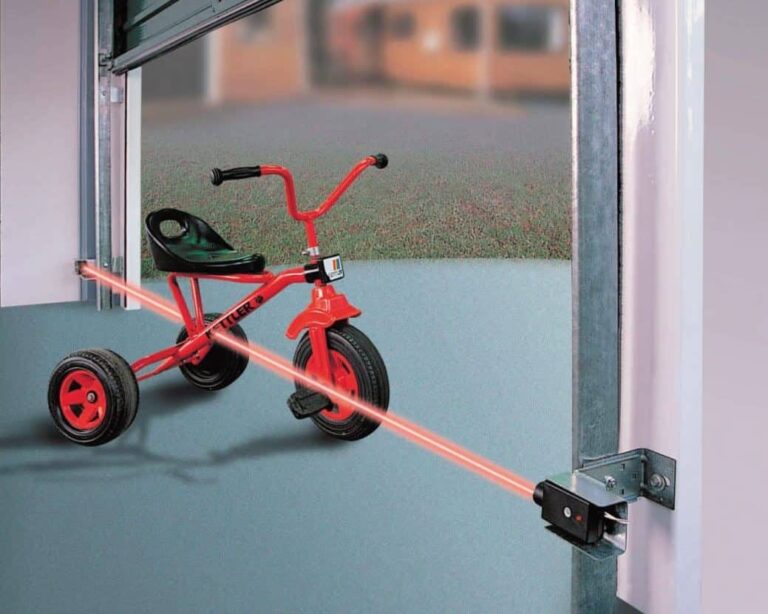

If your garage door won't close and immediately reverses, the most common cause is misaligned or dirty sensors. The safety sensors detect an (often invisible) obstruction and prevent the door from closing to protect safety. Check if the light on the sensors is blinking—this indicates alignment issues. Try cleaning the sensor lenses with a soft cloth and ensuring both sensors face each other directly. If the door closes when you hold the wall button continuously but not with a quick press, this confirms a sensor issue. Other causes include sunlight interference, damaged wiring, or defective sensors requiring replacement.

Garage door sensor repair costs vary by the specific issue. Simple fixes like sensor alignment or cleaning typically cost $75-$125 as part of a service call. Complete sensor replacement runs $150-$300 including parts and labor. The sensor pair alone costs $30-$80 if you're doing DIY installation. Wiring repair falls in the $100-$200 range depending on extent of damage. Many sensor problems are inexpensive fixes rather than full replacements. Our technicians always attempt simple solutions first to minimize your cost while ensuring safe operation.

While technically possible, you should never bypass garage door sensors permanently. Sensors are required by federal law (UL325 regulations) and are a critical safety feature preventing injuries and property damage. The only acceptable bypass is the temporary function that allows closing by holding the wall button continuously—this is for emergencies only, like when you're leaving town and need to secure the garage despite sensor issues. Never disconnect or permanently bypass sensors. If sensors aren't working correctly, schedule professional repair immediately. Operating without functional sensors puts your family at serious risk.

A blinking garage door sensor light indicates the sensors are not aligned properly. When one sensor blinks, it means it's not receiving the infrared beam from its partner sensor on the opposite side. This misalignment prevents the door from closing as a safety precaution. Common causes include sensors being bumped, mounting brackets loosening over time, or vibration gradually shifting sensor position. To fix the issue, loosen the mounting bracket slightly and adjust the sensor until both lights glow steadily. Some brands show two green lights when perfectly aligned. If realigning doesn't stop the blinking, clean the sensor lenses or call a professional.

Signs of defective garage door sensors include: lights completely off on one or both sensors despite having power, sensors that won't align no matter how you adjust them, physical damage to sensor housing or lens, moisture inside the sensor casing, or persistent problems after cleaning, alignment, and wiring checks. Test by manually blocking the beam with your hand—if the door doesn't reverse, sensors aren't detecting properly. If you've verified good wiring connections, cleaned lenses thoroughly, aligned sensors carefully, and problems persist, the sensors have likely failed and need replacement. Most sensors last 10-15 years before developing issues.

Yes, garage door safety sensors are required by federal law in the United States. Since 1993, UL325 safety regulations mandate that all automatic garage door openers include safety reversal systems. This includes both safety sensors (photo-eye systems) and mechanical force settings that reverse the door if resistance is detected. These requirements were implemented after numerous injuries and deaths from garage doors closing on people, particularly children. Operating a garage door without functional sensors violates safety codes and creates serious liability if an accident occurs. Always maintain your sensors in proper working order—it's not just about convenience, it's about protecting lives.
